1300pcs/hr Long Pole Rolling Semi Automatic Screen Printer For Long Tube

1300pcs/hr Long Pole Rolling Semi Automatic Screen Printer For Long Tube

1300pcs/hr Long Pole Rolling Semi Automatic Screen Printer For Long Tube
1300pcs/hr Long Pole Rolling Semi Automatic Screen Printer For Long Tube

Large Image :1300pcs/hr Long Pole Rolling Semi Automatic Screen Printer For Long Tube

Product Details:
Place of Origin: GUANGZHOU,CHINA
Brand Name: SHEN FA,EASY
Certification: CE
Model Number: SF-400/S
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Packaging Details: Wooden case
Delivery Time: 10 work days
Payment Terms: L/C, T/T
Supply Ability: 50Set/Month
Detailed Product Description
Max. Printing Height: 400mm Max. Printing Diameter: 30mm
Max. Printing Speed: 1300pcs/hr Wattage: 220/110V 60/50Hz
Air Consume: 80Litre/min(6bar) Weight: 230kg
High Light:

Superfine Semi Automatic Screen Printer

,

1300pcs/hr Rolling Semi Automatic Screen Printer

,

1300pcs/hr Long Tube Screen Printing Machine

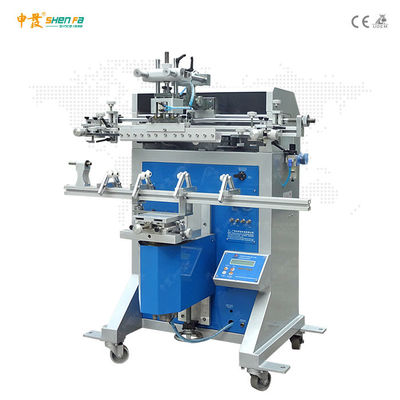

SF-400/S Long Pole Rolling Screen Printing Machine For Long Tube

Application:

Our company manufactures the SF-400/S screen printing machine,which is the reformed machine according to SF-400.It is fit for print onf the long round work-pieces.For example:golf clubs ,fish poles,water tubes,etc

Technical Parameters:

Model Name Max.printing size Speed(Pieces/minute) Machine size(LxWxH) Net Weight Air Pressure(bar) Power
SF-400/S Long pole rolling screen printing machine φ30X400mm 20 150X80X133cm 175kg 5 220V/50Hz 60w

Features:

1 Microprocessor control and easy operation;
2 5-digit auto counter built in;
3 Auto ink squeegeeing and flooding and worktable elevating;
4 Auto balanced squeegee to ensure equalized printing pressure;
5 Worktable can be adjusted up/down and left/right ;
6 Printing stroke and speed are adjustable ;
7 Safety guard is equipped to meet CE standard .
8 Gemany Festo and Japan SMC cylinder and air valves.
